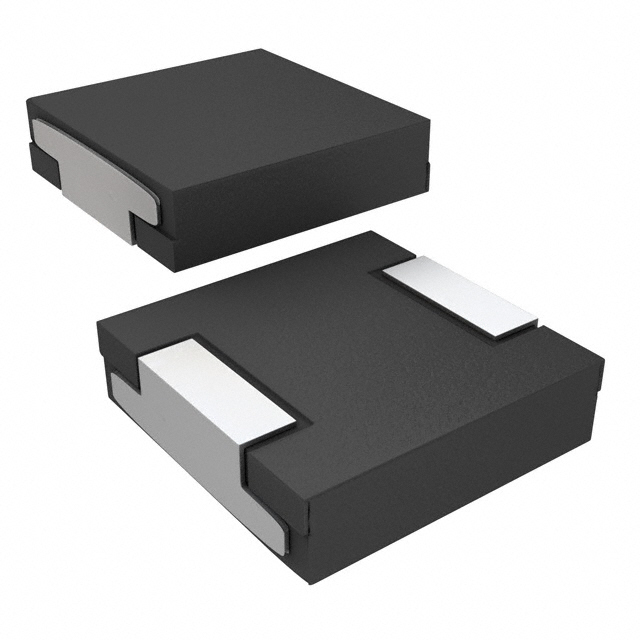

IHLP5050EZER4R7M01
FIXED IND 4.7UH 12A 15 MOHM SMDManufacturer: Vishay Dale
Categories: Fixed Inductors
Quality Control: Learn More
4.7 µH Shielded Molded Inductor 12 A 15mOhm Max Nonstandard
Additional Information
Series: IHLP-5050EZ-01RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Size / Dimension | 0.520"" L x 0.508"" W (13.20mm x 12.90mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 15mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Current - Saturation (Isat) | 27A |
| Material - Core | - |
| Inductance Frequency - Test | 100 kHz |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.197"" (5.00mm) |
| Inductance | 4.7 µH |
| Current Rating (Amps) | 12 A |
Request a Quote
Clients Also Buy
IHLP5050EZER1R0M01
FIXED IND 1UH 29A 2.5 MOHM SMD

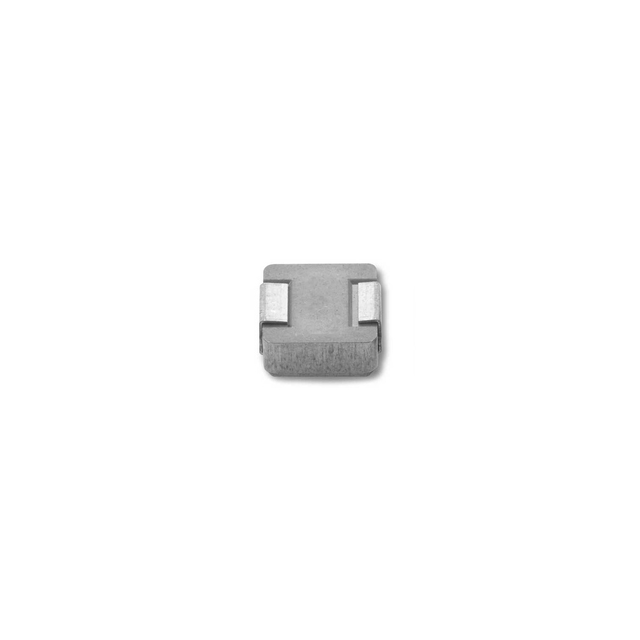

IHLP2020CZET100M01
FIXED IND 10UH 2.5A 164MOHM SMD

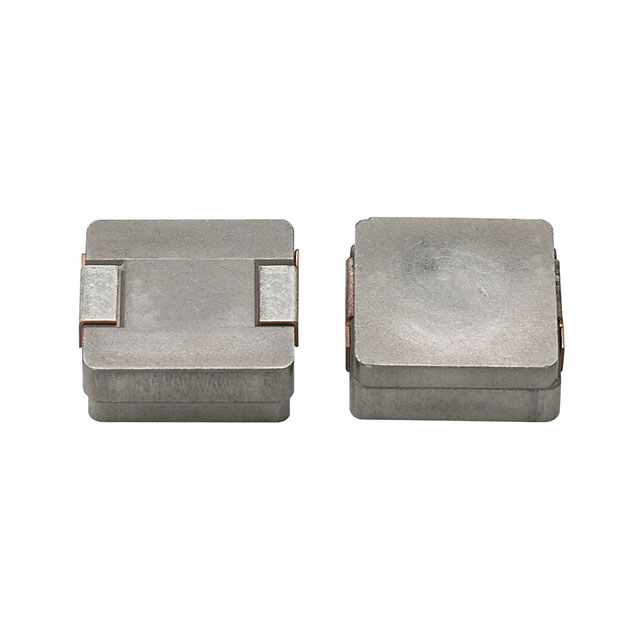

IHLP5050EZER150M01
