TPH2R608NH,L1Q
MOSFET N-CH 75V 150A 8SOPManufacturer: Toshiba Semiconductor and Storage
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 75 V 150A (Tc) 142W (Tc) Surface Mount 8-SOP Advance (5x5)
Additional Information
Series: U-MOSVIII-HRoHS Status: RoHS CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 150A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.6mOhm @ 50A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 142W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | 8-SOP Advance (5x5) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 75 V |
| Gate Charge (Qg) (Max) @ Vgs | 72 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6000 pF @ 37.5 V |
Request a Quote
Clients Also Buy

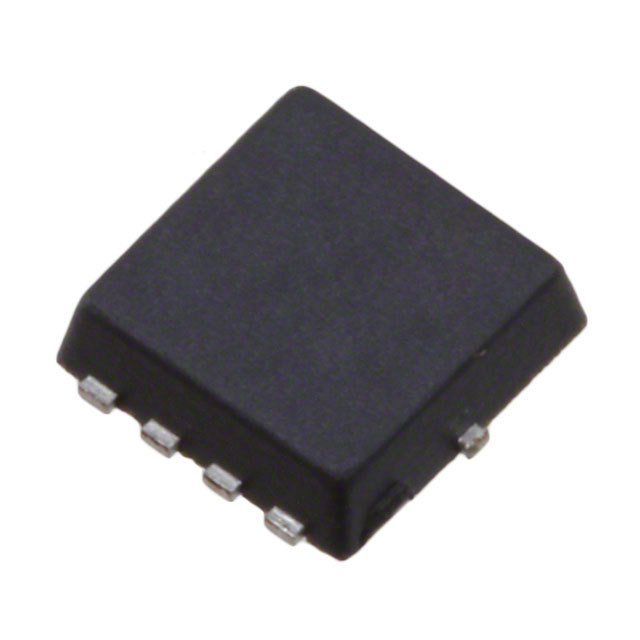

TPN1600ANH,L1Q
MOSFET N CH 100V 17A 8TSON-ADV

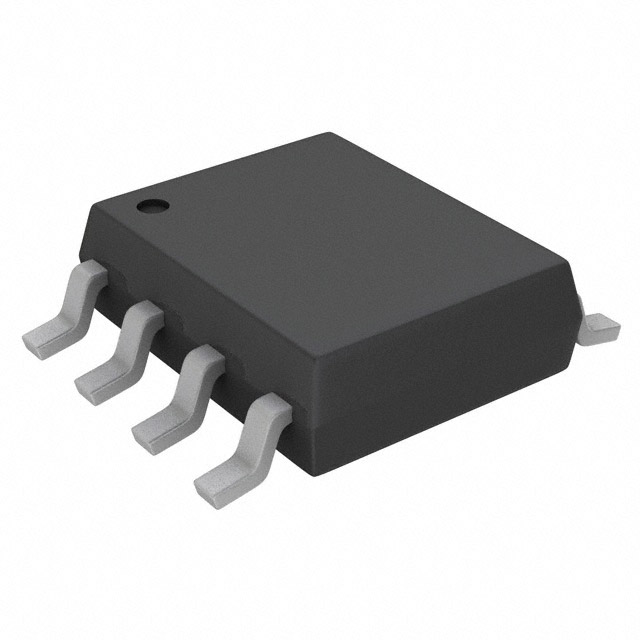

TP86R203NL,LQ
