BAS316,H3F
DIODE GEN PURP 100V 250MA USCManufacturer: Toshiba Semiconductor and Storage
Categories: Single Diodes
Quality Control: Learn More
Diode 100 V 250mA Surface Mount USC
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-76, SOD-323 |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 3 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 0.35pF @ 0V, 1MHz |
| Current - Average Rectified (Io) | 250mA |
| Supplier Device Package | USC |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Current - Reverse Leakage @ Vr | 200 nA @ 80 V |
Request a Quote
Clients Also Buy
CRS08(TE85L,Q,M)
DIODE SCHOTTKY 30V 1.5A S-FLAT

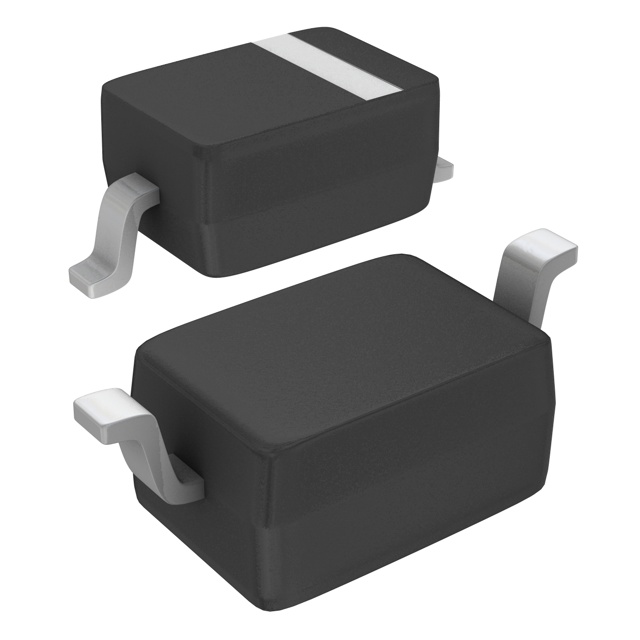

1SS367,H3F
DIODE SCHOTTKY 10V 100MA USC

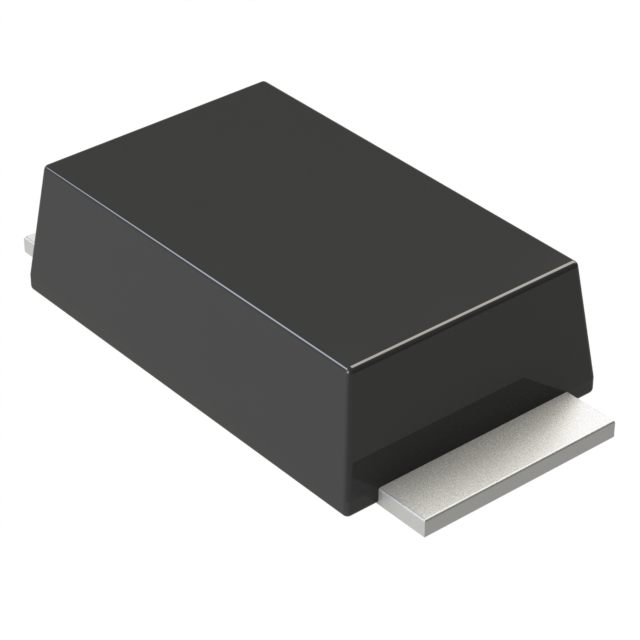

CMH04(TE12L,Q,M)
