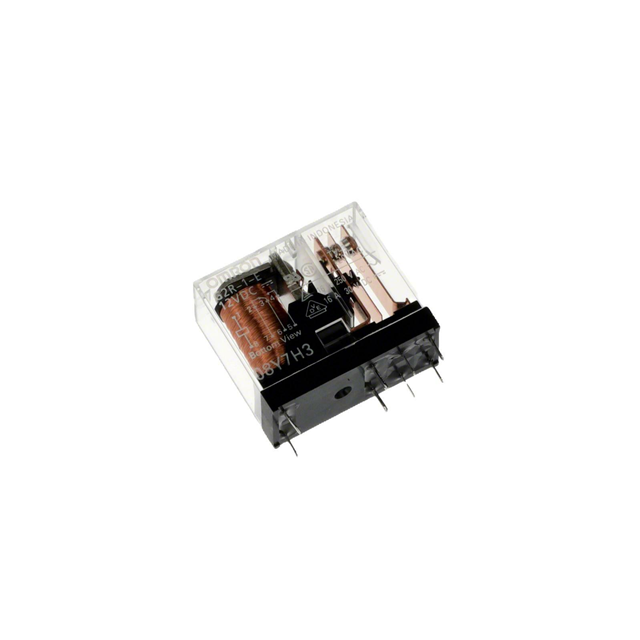

G2R-1-E AC12
RELAY GEN PURPOSE SPDT 16A 12VManufacturer: Omron Electronics Inc-EMC Div
Categories: Power Relays, Over 2 Amps
Quality Control: Learn More
General Purpose Relay SPDT (1 Form C) 12VAC Coil Through Hole
Additional Information
Series: G2RRoHS Status: Request inventory verificationManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Mounting Type | Through Hole |
| Coil Voltage | 12VAC |
| Operating Temperature | -40°C ~ 70°C |
| Termination Style | PC Pin |
| Approval Agency | CSA, TUV, UR, VDE |
| Relay Type | General Purpose |
| Coil Current | 75 mA |
| Coil Type | Non Latching |
| Seal Rating | Sealed - Flux Protection |
| Contact Material | Silver Alloy |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 380VAC, 125VDC - Max |
| Must Release Voltage | 3.6 VAC |
| Must Operate Voltage | 9.6 VAC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 6080VA, 2000W |
Request a Quote
Clients Also Buy

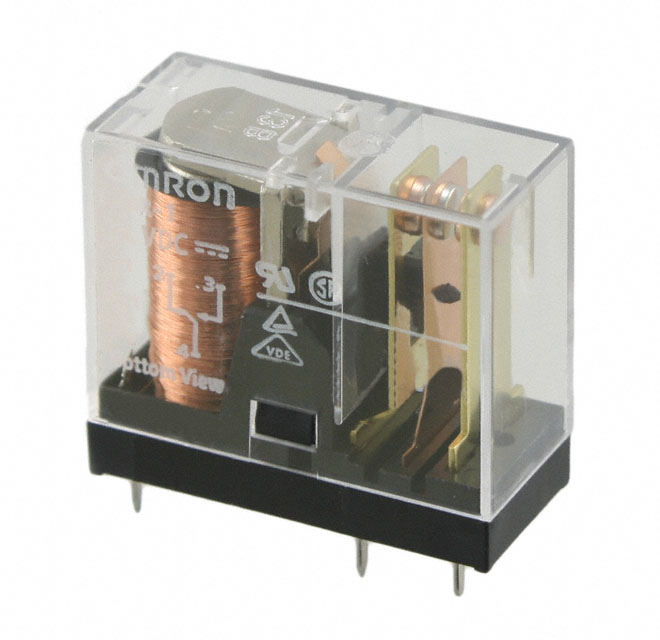

G2R-1 AC120
