TEA1723BT/N1,118
IC OFFLINE SWITCH FLYBACK 7SOICManufacturer: NXP USA Inc.
Categories: AC DC Converters, Offline Switches
Quality Control: Learn More
Converter Offline Flyback Topology 22.5kHz ~ 50.5kHz 7-SOIC
Additional Information
Series: GreenChip™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width), 7 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Duty Cycle | 75% |
| Frequency - Switching | 22.5kHz ~ 50.5kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Output Isolation | Non-Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 20V |
| Supplier Device Package | 7-SOIC |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit |
| Voltage - Start Up | 17 V |
| Control Features | - |
| Power (Watts) | 11 W |
Request a Quote
Clients Also Buy
TEA18363T/1J
IC OFFLINE SWITCH FLYBACK 8SO
TEA1723FT/N1,118
IC OFFLINE SWITCH FLYBACK 7SOIC

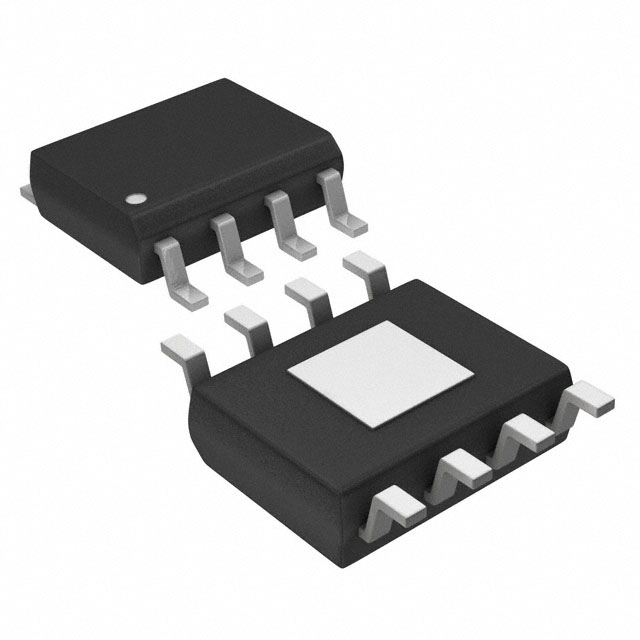

TEA2095TE/1Y
