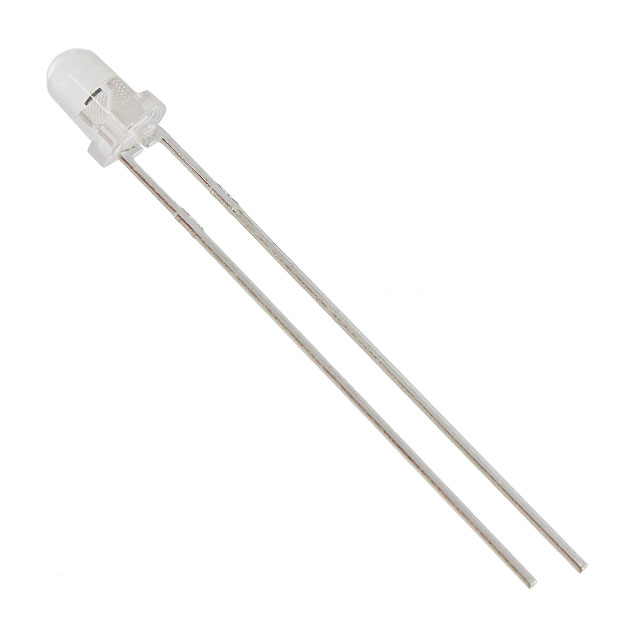

LTR-4206
SENSOR PHOTO 940NM TOP VIEW T1Manufacturer: Lite-On Inc.
Categories: Phototransistors
Quality Control: Learn More
Lite-On Inc. LTR-4206 is a top-view phototransistor package designed for infrared detection at 940nm. This T-1 sized component features a maximum collector current (Ic) of 4.8 mA and a low dark current (Id) of 100 nA. With a collector-emitter breakdown voltage of 30 V and a maximum power dissipation of 100 mW, the LTR-4206 is suitable for reliable performance within an operating temperature range of -40°C to 85°C. Its 20° viewing angle makes it applicable in various sensing and control applications, including industrial automation, consumer electronics, and automotive systems where precise infrared detection is critical. The LTR-4206 is supplied in bulk packaging with a through-hole mounting type.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | T-1 |
| Wavelength | 940nm |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C |
| Viewing Angle | 20° |
| Current - Dark (Id) (Max) | 100 nA |
| Current - Collector (Ic) (Max) | 4.8 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Power - Max | 100 mW |
Request a Quote
Clients Also Buy

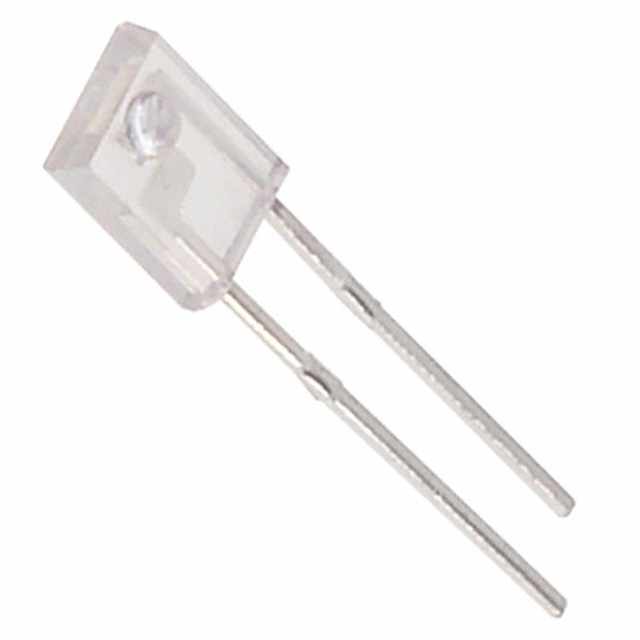

LTR-301
