CBRDFSH1-60 TR13
1A,60V SURFACE MOUNT RECTIFIER-BManufacturer: Central Semiconductor Corp
Categories: Bridge Rectifiers
Quality Control: Learn More

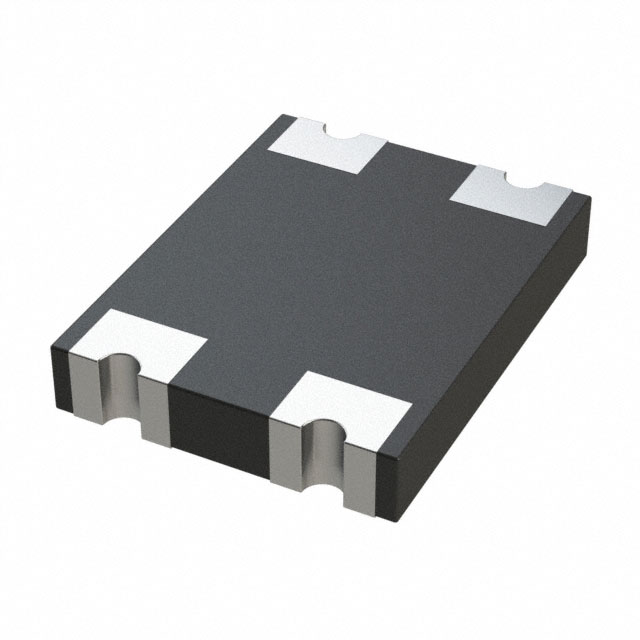

Bridge Rectifier Single Phase Schottky 60 V Surface Mount 4-BR DFN
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-LDFN |
| Mounting Type | Surface Mount |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Technology | Schottky |
| Supplier Device Package | 4-BR DFN |
| Voltage - Peak Reverse (Max) | 60 V |
| Current - Average Rectified (Io) | 1 A |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 1 A |
| Current - Reverse Leakage @ Vr | 200 µA @ 60 V |
Request a Quote
Clients Also Buy

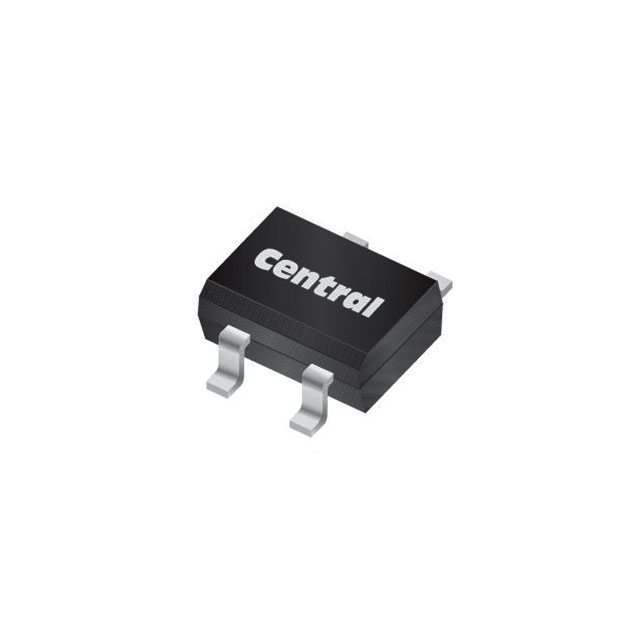

CBRHD-01 TR13 PBFREE
BRIDGE RECT 1P 100V 500MA HD DIP

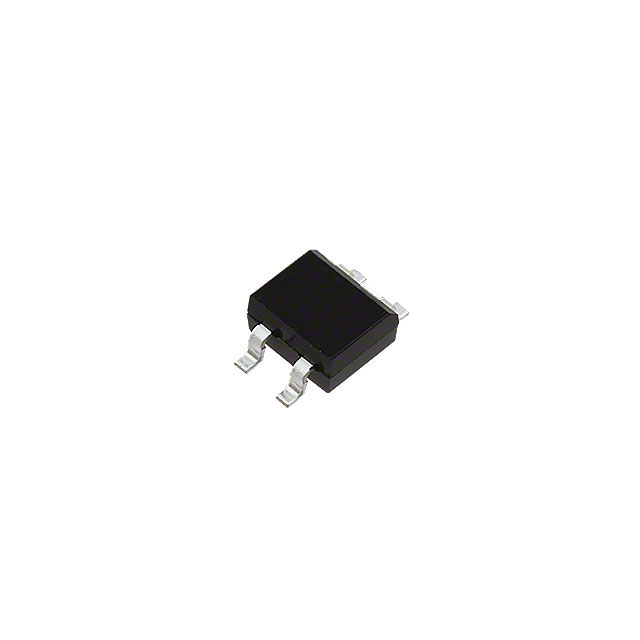

CBR1-D060S TR13 PBFREE
