ADF7021BCPZ-RL
IC RF TXRX ISM<1GHZ 48LFCSPManufacturer: Analog Devices Inc.
Categories: RF Transceiver ICs
Quality Control: Learn More
IC RF TxRx Only General ISM < 1GHz 80MHz ~ 650MHz, 862MHz ~ 950MHz 48-WFQFN Exposed Pad, CSP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

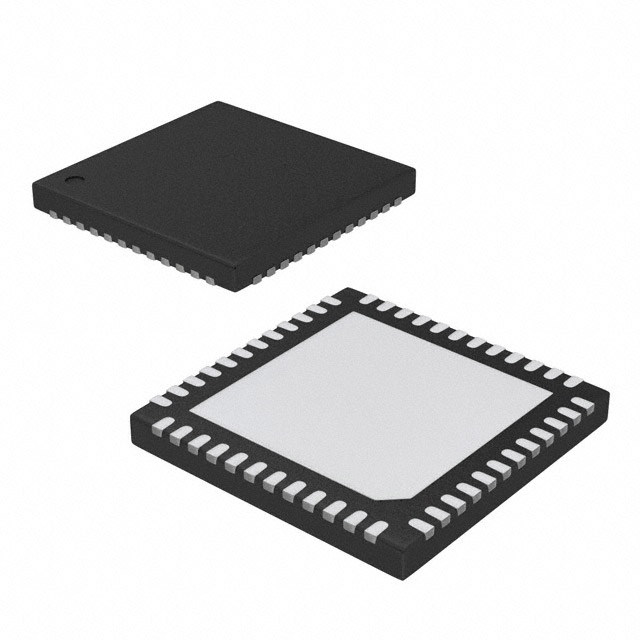

| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Sensitivity | -130dBm |
| Mounting Type | Surface Mount |
| Frequency | 80MHz ~ 650MHz, 862MHz ~ 950MHz |
| Memory Size | - |
| Type | TxRx Only |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.3V ~ 3.6V |
| Power - Output | 13dBm |
| Protocol | - |
| Current - Receiving | 17.5mA ~ 26.4mA |
| Data Rate (Max) | 32.8kbps |
| Current - Transmitting | 13.5mA ~ 32.3mA |
| Supplier Device Package | 48-LFCSP (7x7) |
| Modulation | 2FSK, 2GFSK, 3FSK, 4FSK, FHSS, GMSK, MSK |
| RF Family/Standard | General ISM < 1GHz |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
Request a Quote
